Brass Ball Valve

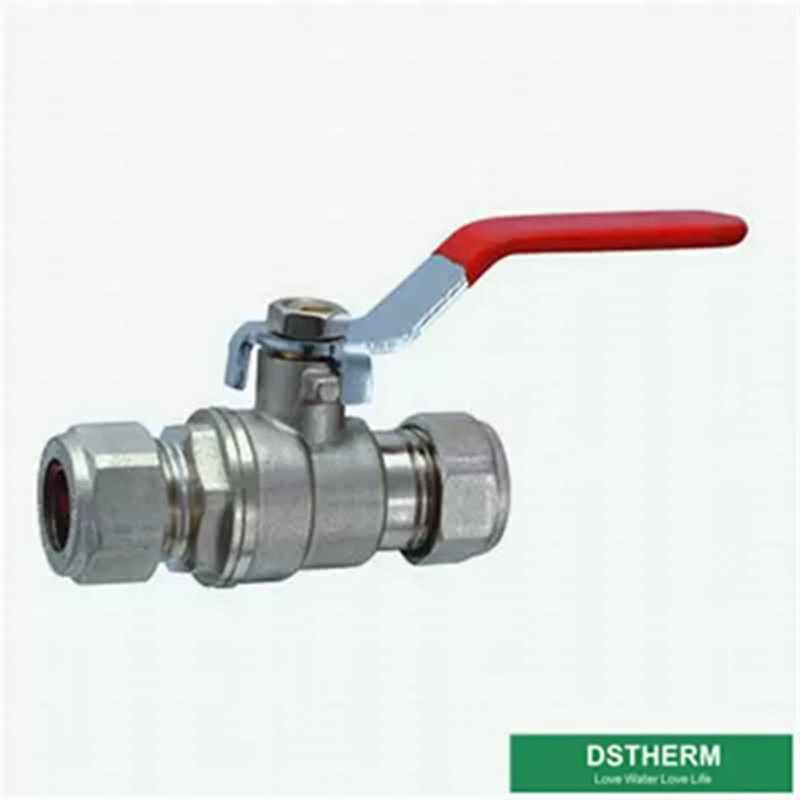

PEX Pipe Valves Brass Color Middle Weight Water Supplying Ball Valve Customized Forged Brass Ball Valve

Place of Origin:Zhejiang China
Brand Name:DSTHERM
Certification:ISO9001,CE
Model Number:1/2'-2'
Product description: Ppr pipe, Ppr Fittings, Plastic ppr pipe, plastic pipe, tube,pprct pipe, pprct fittings, Ppr Aluminum pipe, Ppr-Al-Ppr pipe, Ppr Fiber Pipe, Ppr Uv Pipe, Ppr perforated pipe, Ppr stop valve, Ppr Ball
INQUIRY

PEX Pipe Valves Brass Color Middle Weight Water Supplying Ball Valve Customized Forged Brass Ball Valve

Payment & Shipping Terms

Description

PEX Pipe Valves Brass Color Middle Weight Water Supplying Ball Valve Customized Forged Brass Ball Valve 0

Ball Valve

Material	Brass Body, Brass Bonnet, Chromed brass ball, iron handle
Surface	Natural brass or Nickel plated
Size	1/2"3/4"1"11/4"11/2"2"21/2"3"4"
Samples Time	1) 2 days - For our existing samples for reference 2) 30 days - If new size, need make the new mould
OEM Acceptable	Yes
Service	7*24 Hours
Packing Details	Poly bag, inner box, out carton( pallet)
Payment Term	T/T, L/C, WESTERN UNION
Delivery Time	35-40 days after confirming the order
Minimum Order Quantity	2000-3000 Pieces

Item: Ball Valve
Size: 1/4" - 4"
Brass material: 59-3
Connection Type: Female BSP x Female BSP
Handle Material: IRON / AL
Handle Type: Lever
Stem Type: Blowout Proof
Stem Material: Brass
Seat Material: PTFE
Body Seal Material: PTFE

Ball Material: Chrome Plated Brass
Valve Basic Body Material: Brass
Surface Treatment: Nickel Plating
Application: Can be used for oil & petroleum, and water
Max. Temp: -20°C to+120°C
Working Pressure: 25bar/362.5psi
Port: All
Features: Full Port for Maximum Flow Rate
Standards: EN13828

PEX Pipe Valves Brass Color Middle Weight Water Supplying Ball Valve Customized Forged Brass Ball Valve 1

Advantages

1) Fast Material Supply.

2) Every valve goes through a six-step QC process before delivery.

Material Control, Machining Quality Control, In-coming Material Inspection, Assembly Line Quality Control, Leakage Testing, Final Inspection Before Delivery.

3) 100% Leakage Test.

4) Strictly and perfect management in production.

5) Guarantee Quality In Competitive Price.

6) On-time Delivery.

7) Complete R&D facilities and Excellent team.
